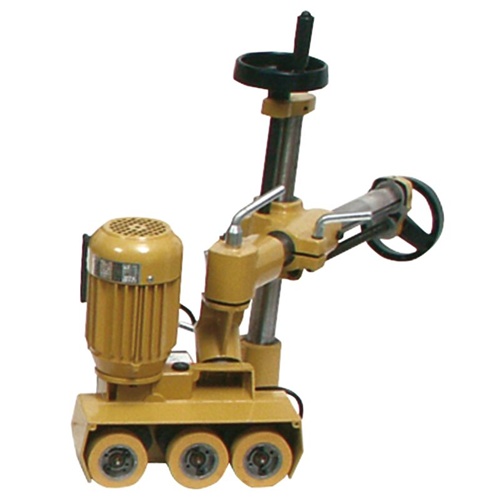

This rugged, heavy-duty stock feeder features a continuous-duty motor that transfers power from the gear box to the feed roller through the roller chain and sprockets, providing superior positive feeding for all types of materials. The fully adjustable support column features moveable universal joints and heavy locking mechanisms that lock the feeder in horizontal, vertical, or angle feed positions. Solid cast iron construction of body, base and universal joints provides stability with vibration-free feeding. The roller system provides money-saving wheel changes by allowing the replacement of a single roller, instead of a complete set.

• Part Number 1790818
• Number of Speeds 4 speeds
• Range of Speeds 13, 26, 33, 62 FPM
• Movement - Vertical 6.52 "
• Movement - Horizontal 9 4/5 "
• Column Diameter 1 3/5 "
• Rollers 3 1/8 " x 1 3/16 "
• Distance Between Rollers - Center to Center 4.32 - 3.34 "
• Maximum Height of Rollers Parallel to Tabletop 6 "
• Rotation Forward/Reverse
• Swing 360 °
• Motor Power ¼ HP
• Motor Voltage 115 V
• Motor Phase 1 Ph
• Model Number PF3-JR
• Brand Powermatic
• Overall Dimensions 27.5 x 11.8 x 23.2
• Height 23.2 inch
• Width 11.8 inch
• Length 27.5 inch
• Net Weight 71 pound

WARRANTY AND SERVICE

JPW Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these JPW Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your POWERMATIC® tools.
