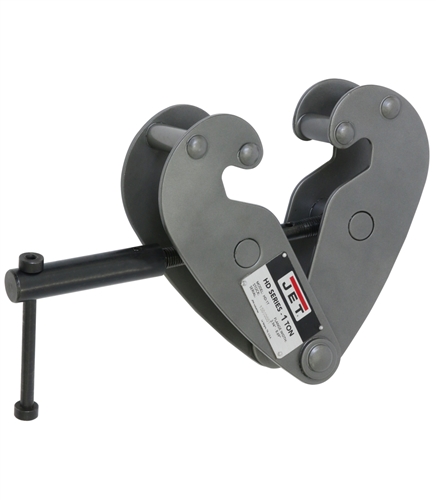

JET "HD-Series" Heavy-Duty Beam Clamps

JET "HD-Series" Heavy-Duty Beam Clamps

JET HD Series Beam Clamps come in capacities from 1 ton to 5 tons and can accommodate a beam up to 12 inches wide. Each JET Beam Clamp Jaw is designed to distribute the load away from the beam flange and adjusts easily for a wide range of standard H or I beams. Available up to 5 Ton capacities, the HD Series has a greater beam flange width for wider beams.

Item# Item Name List Price Our Price Qty Add
202710 JET HD-1T 1-Ton Heavy-Duty Beam Clamp
$128.00
$81.00
202720 JET HD-2T 2-Ton Heavy-Duty Beam Clamp
$158.00
$101.00
202730 JET HD-3T 3-Ton Heavy-Duty Beam Clamp
$222.00
$139.00
202750 JET HD-5T 5-Ton Heavy-Duty Beam Clamp
$270.00
$172.00
Check the items you wish to purchase, then click


Features:
  • Durability
  • Welded all-steel frame and powder coat finish provide maximum durability and protection
  • Clamp jaw is designed to distribute the load away from the beam flange edge increasing safety
  • Used for quick mounting of a hoist or for lifting a broad range of beams up to 12-3/5 inches wide for increased versatility
  • Complies with ANSI / ASME B30.17 and B30.20 standards
  • Certification- Load tested to 125% of capacity with certificate




Technical Specs:
  • Part Number: 202710
  • Model Number: HD-1T
  • Capacity (Tons): 1-Ton
  • Capacity (Lbs.): 2,200 Lbs.
  • Beam Flange Width: 2-15/16" to 8-11/16"
  • Shipping Weight: 10 Lbs.


  • Part Number: 202720
  • Model Number: HD-2T
  • Capacity (Tons): 2-Ton
  • Capacity (Lbs.): 4,400 Lbs.
  • Beam Flange Width: 2-15/16" to 8-11/16"
  • Shipping Weight: 11 Lbs.


  • Part Number: 202730
  • Model Number: HD-3T
  • Capacity (Tons): 3-Ton
  • Capacity (Lbs.): 6,600 Lbs.
  • Beam Flange Width: 3-1/8" to 12-5/8"
  • Shipping Weight: 21 Lbs.

    Part Number: 202750
  • Model Number: HD-5T
  • Capacity (Tons): 5-Ton
  • Capacity (Lbs.): 11,000 Lbs.
  • Beam Flange Width: 3-9/16" to 12-5/8"
  • Shipping Weight: 24 Lbs.




Extended Information:
JET RED ASSURANCE 2-YEAR WARRANTY JET warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these JPW Industries Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your JET tools.
