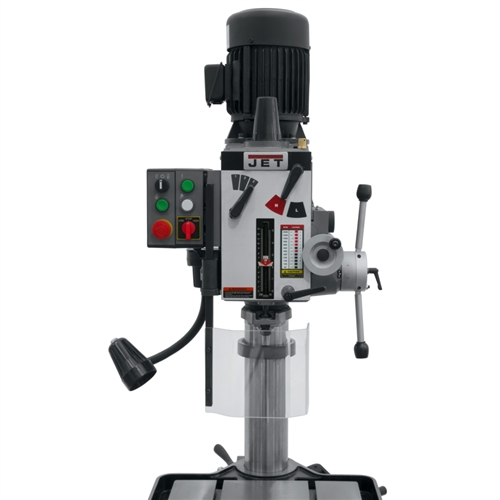

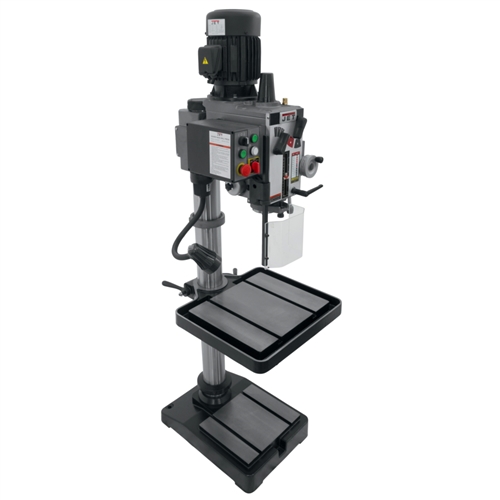

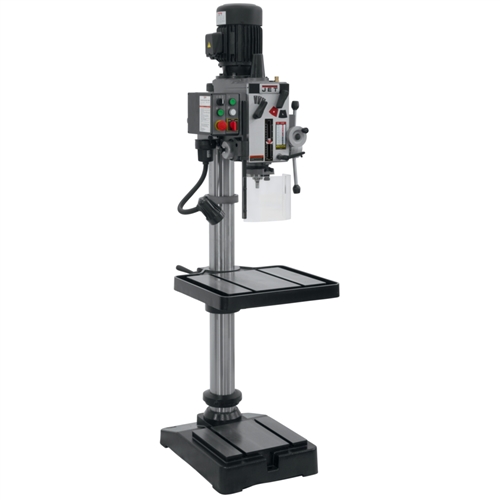

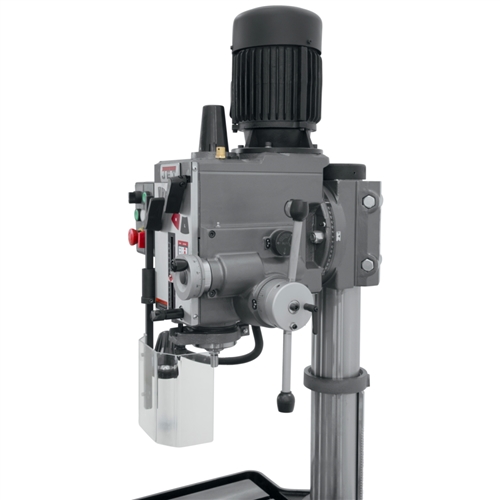

This 20" geared head drilling and tapping press has a heavy duty design and allows for a variety of precision drilling applications. Included are three power down feeds with a built-in spindle lock. The head tilts left or right and also has a calibrated fine down feed built-in. The large production table and T-slotted base has an easy to access table raiser. Also included are integrated tapping and reversing controls, a drill chuck arbor, and a draw bar.
- Part Number 354026
- Motor 2HP, 230V, 3Ph, 2-speed
- Number of Spindle speeds 12
- Range of Spindle Speeds (RPM) 120, 260, 460, 900, 1600, 3000, 60, 130, 230, 450, 800, 1500
- Spindle Taper MT-3
- Quill Diameter (in.) 3
- Max Distance Spindle to Table ( in.) 30-7/8
- T-Slots Number and Size (in.) 2 & 5/8
- T-Slot Centers (in.) 6-1/4
- Work Table Weight Capacity (lbs.) 275
- Column Diameter (in.) 4-1/2
- Drilling Capacity Cast Iron (in.) 1-1/2
- Drilling Capacity Mild Steel (in.) 1-1/4
- Tapping Capacity Cast Iron (in.) 13/16
- Tapping Capacity Mild Steel (in.) 1/2
- Quill Travel (in.) 4-1/2
- Quill Travel w/ Powerfeed engaged (in.) .004, .007, .01
- Distance Base to Spindle (in.) 44-3/8
- Table Size (in.) 21-1/4 x 18-1/2
- Distance Column to Spindle (in.) 10
- Drills to Center of Circle (in) 20
- Spindle Distance to Base (in.) 44-3/8
- Swing (in.) 20
- Spindle Travel (in.) 4-1/2 Manual
- Auto 4-1/4
- Number of Powerfeeds 3
- Model Number GHD-20PFT
- Brand Jet
- Overall Dimensions 32 x 24 x 71
- Height 76 inch
- Width 29 inch
- Length 32 inch
- Net Weight 708 pound
