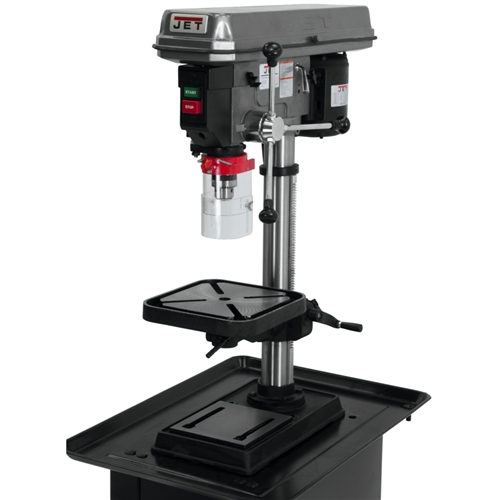

The J-2530 15" Bench Drill Press boasts a 3/4-HP motor and tilting table. Simple yet powerful, the J-2530 has a cast iron head and large quill - allowing greater accuracy.
- Part Number 354401
- Motor 3/4HP, 1 PH, 115V
- Number of Spindle speeds 16
- Range of Spindle Speeds (RPM) 200,290,350,430,500,580,640,720,800,870,1440,1630,1820,2380,2540,3630
- Spindle Taper 2MT
- Quill Diameter (in.) 1-7/8
- Column Diameter (in.) 2-7/8
- Base Dimensions (LxWxH/ in.) 11 X 18-1/2
- Drilling Capacity Cast Iron (in.) 5/8
- Drilling Capacity Mild Steel (in.) 1/2
- Quill Travel (in.) 3-1/8
- Distance Base to Spindle (in.) 24-1/2
- Table Size (in.) 10 X 10
- Distance Column to Spindle (in.) 7-1/2
- Chuck Size (in.) 5/8
- Drills to Center of Circle (in) 15
- Spindle Distance to Base (in.) 24-1/2
- Swing (in.) 15
- Table Dimensions 10 x 10
- Model Number J-2530
- Brand Jet
- Overall Dimensions 26 X 13-3/8 X 39
- Height 12 inch
- Width 22.5 inch
- Length 32 inch
- Net Weight 157 pound
WARRANTY AND SERVICE
WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your Jet® tools.
|
