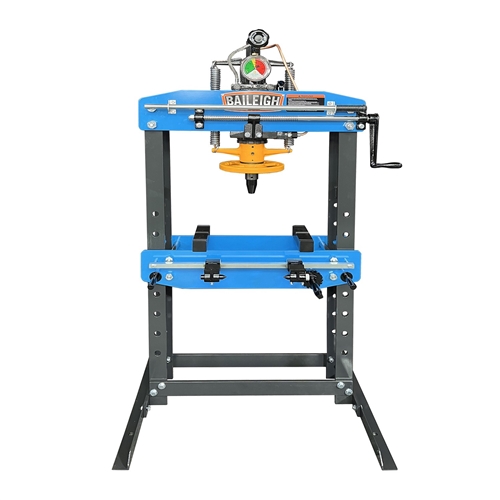

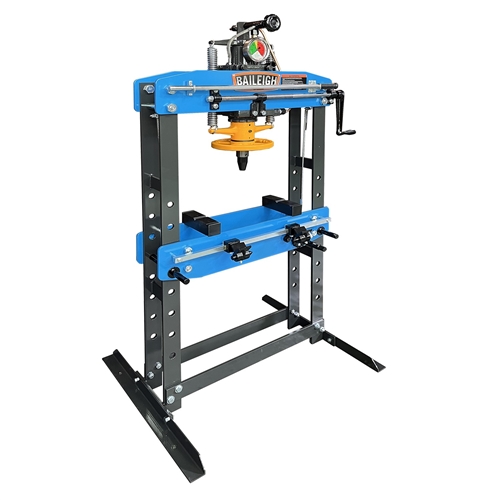

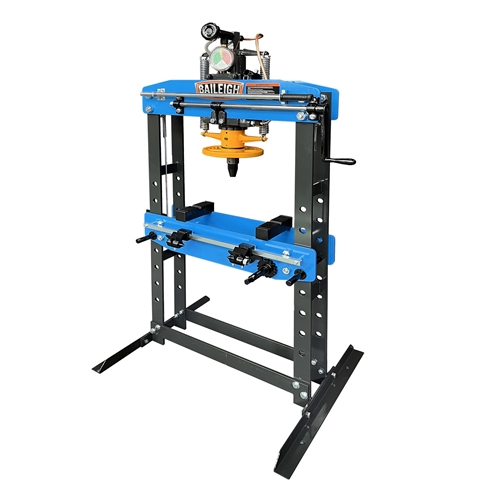

Baileigh's HSP-15A is a 15-ton Hydraulic Shop Press with an H-frame. Each machine is built using a heavy steel plate that is electro-welded together and comes standard with industrial-grade hydraulics. These 15-ton hydraulic shop presses are for serious fabrication and machine shop owners who demand only the best quality from their operation.

• Model Number: HSP-15A
• Table Size: 24.75" x 7.5"
• Base Size: 34" x 29.5"
• Piston Head Diameter: 2"
• Movable Cylinder: Yes
• Movement: 23.25" Table Travel
• Ram Size: 2.5"
• Working Width: 24"
• Stroke: 4" (Screw)
• Stroke Distance: .075" Per Pump
• Maximum Capacity: 15 tons
• Cylinder Stroke: 4.75"
• Power: Manual
• Shipping Weight: 435lbs
• Overall Height: 65"
• Shipping Dimensions (Inches): ‎70 x 36.5 x 18.5

WARRANTY AND SERVICE

JPW Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these JPW Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your Baileigh Industrial tools.
