A blade surround and collection hose provide an unobstructed path, maximizing dust collection

Conveniently located hands free power switch

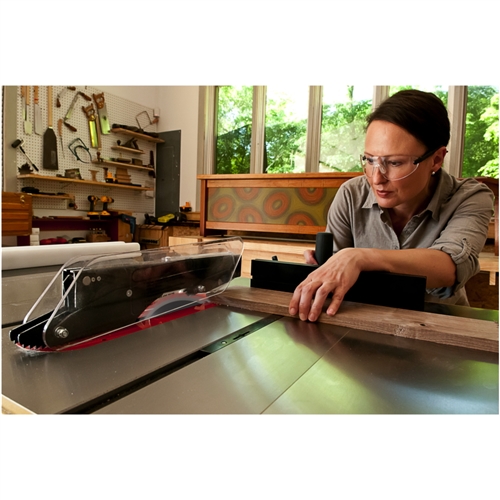

Tool-less guard assembly with independent side leaves is easy to use, maximizing safety

The sturdy miter gauge pivots 60 degrees to either side, allowing easy adjustment for a full range of cuts

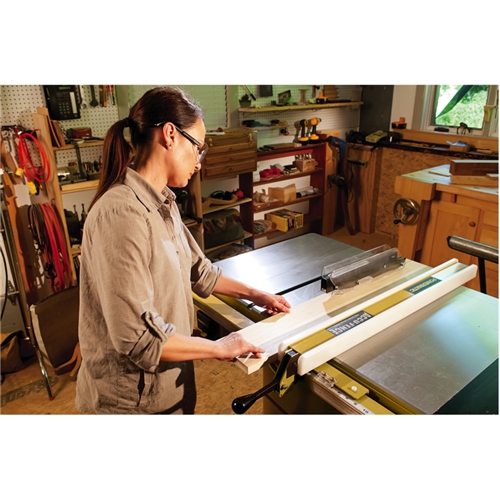

Exclusive AccuFence provides rigidity and precision

The poly-V belt drive system reduces vibration and maximizes efficiency

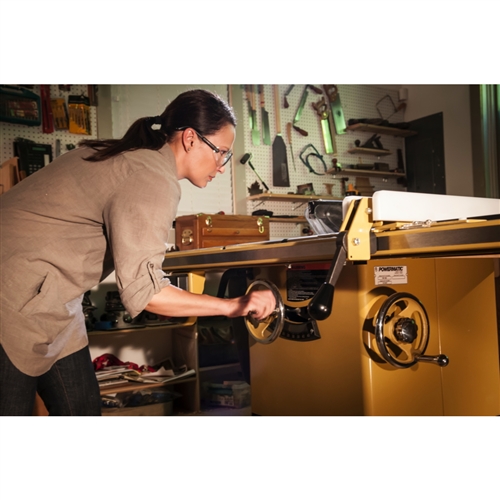

Ergonomically designed 7” handwheels provide momentum – making blade height and bevel adjustments easy

Arbor lock allows for one handed blade changes with minimal tools

Cast iron work surface features a beveled edge

Bevel scale is conveniently located with large, easy to read numbers

Hinged motor cover provides quick access to the interior of the cabinet

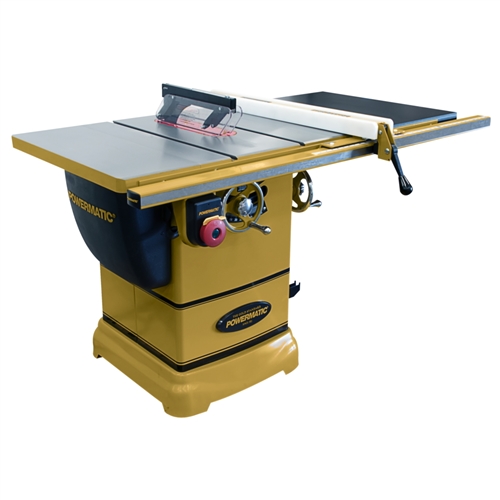

Style (Type): Cabinet

Blade Diameter (In.): 10”

Arbor Diameter (In.): 5/8”

Arbor Speed (RPM): 4200 RPM

Maximum Depth of Cut at 90 Degrees (In.): 3-1/8”

Maximum Depth of Cut at 45 Degrees (In.): 2-1/8”

Maximum Diameter of Dado (In.): 8”

Maximum Width of Dado (In.): 13/16”

Table in Front of Saw Blade at Maximum Depth of Cut (In.): 10”

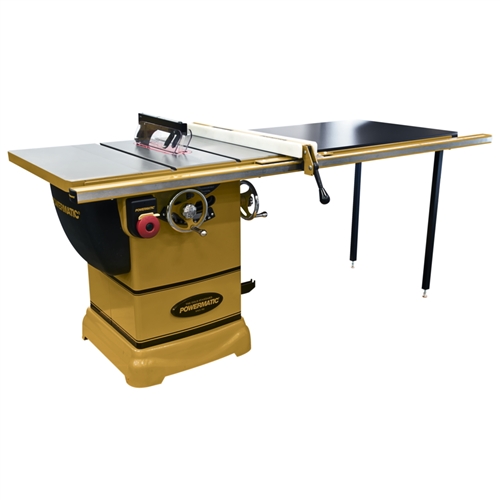

Maximum Rip Right of Blade (In.): 30” (SN: 1791000K), 50" (SN: 1791001K)

Maximum Rip Left of Blade (In.): 12”

Table Type: Cast Iron

Table Height from Floor (In.): 34-1/4”

Table Size (In.): 20” x 27”

Table Size with Extensions (In.): 40” x 27”

Table Size with Full Extensions (In.): 57” x 27”

Table T-Slot (In.): 3/4” x 3/8”

Dust Collection Minimum CFM Required (CFM): 350 CFM

Dust Port Outside Diameter (In.): 4”

Motor Power (HP): 1-3/4 HP

Motor Phase: 1 Ph.

Motor Voltage (V.): 115/230V

Prewired Voltage (V.): 115V

Motor Current (Amps): 15/7.5

Recommended Circuit Size (Amps.): 20

Weight (Lbs.): 418 Lbs.
