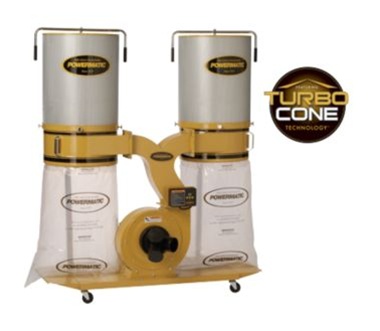

Powermatic PM1900TX-CK Dust Collector with Canister Kit (1 or 3 Phase)

Powermatic PM1900TX-CK Dust Collector with Canister Kit (1 or 3 Phase)

The PM1900 Dust Collector features the exclusive TurboCone™ which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag. The canister filter offers superior filtering surface area over standard bags, and captures 98% of 2-micron particles. A digital timer can be set for up to 99 minutes, and an infrared sensor allows remote control operation. The all-metal duct improves rigidity and air flow. The clear collector bags are large capacity, which means less down-time changing them. Four swivel casters and conveniently located handles allow for easy mobility.

Item# Item Name List Price Our Price Qty Add
1792072K PM1900TX-CK1 with Canister Kit (3 HP, 1 Ph., 230V)
$2,334.00
$1,895.00
1792074K PM1900TX-CK3 with Canister Kit (3 HP, 3 Ph., 230/460V)
$2,272.00
$1,849.00
Check the items you wish to purchase, then click


Features:
  • TurboCone improves chip separation and collector bag packing efficiency
  • The cone eliminates premature filter clogging for sustained performance
  • Remote-controlled digital timer can be programmed for up to 99 minutes
  • All-metal duct construction for rigidity and improved air flow
  • 2-micron canister filters offer over six times filtering surface area of standard bags
  • The large impeller is powered by a 3HP motor for peak performance
  • Triple 4” dust ports allow for several hoses to be attached at the same time
  • Collection bags use a snap ring for rapid installation/removal
  • 10 cubic feet collection bag capacity reduces number of bag changes.
  • Tall filter bags require less cleaning due to the larger surface area
  • Four swivel casters for easy maneuverability




Technical Specs:
  • Air Flow @ 4" (CFM): 236
  • Air Flow @ 6" (CFM): 860
  • Air Flow @ 8" (CFM): 1,782
  • Number of Air Inlets: 1(8") or 3(4")
  • Efficiency (Micron): 2
  • Static Pressure (WC): 11.31
  • Sound Rating (DB): 86 - 92
  • Bag Diameter (In.): 20”
  • Collection Bag Capacity (Cu. Ft.): 10
  • Collection Bag Length (In.): 30”
  • Filter Bag/Canister Length (In.): 26”
  • Impeller Diameter (In.): 14”
  • Impeller Fins: 7
  • Impeller Material: Steel
  • 1-Hose Connection Diameter (In.): 8”
  • 3-Hoses Connection Diameter (In.): 4”
  • Motor PM1900TX-CK1 (SN: 1792072K): 3 HP, 1 Ph., 230V
  • Motor PM1900TX-CK3 (SN: 1792074K): 3 HP, 3 Ph., 230/460V
  • Net Weight: 272 Lbs.




Extended Information:
WARRANTY AND SERVICE JPW Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these JPW Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your POWERMATIC® tools.
