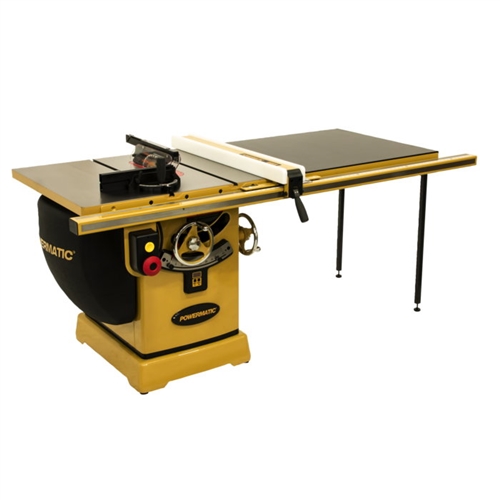

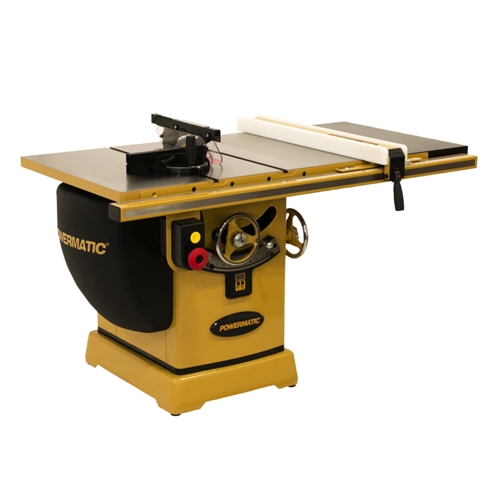

The award winning PM2000 table saw sets a new standard for innovation with an array of patented features and massive body design. It boasts the heaviest cast iron base in its class that virtually eliminates table vibration. The cast iron tables are oversized, and the push button arbor lock is accessible from above the table top to eliminate the need for dual arbor wrenches.
| Item# |
Item Name |
List Price |
Our Price |
Qty |
Add |
| PM23130K |
PM2000B, 10" Tablesaw (3HP, 1Ph, 230V, 30" Fence) |
|
|
|
|
| PM23150K |
PM2000B, 10" Tablesaw (3HP, 1Ph, 230V, 50" Fence) |
|
|
|
|
| PM23150RK |

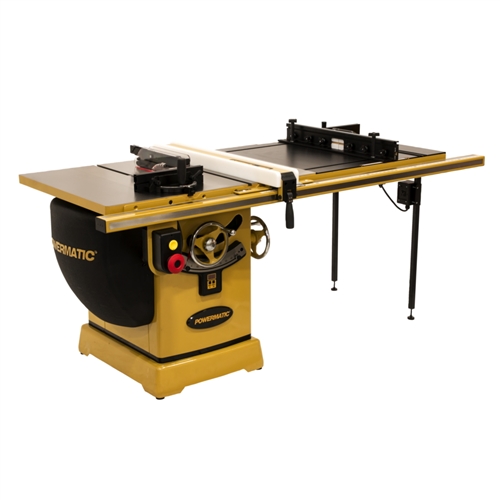

PM2000B, 10" Tablesaw (3HP, 1Ph, 230V, 50" Fence, w/ Router Lift) |
|
|
|
|
| PM25130K |
PM2000B, 10" Tablesaw (5HP, 1 Ph, 230V, 30" Fence) |
|
|
|
|
| PM25150K |
PM2000B, 10" Tablesaw (5HP, 1 Ph, 230V, 50" Fence) |
|
|
|
|
| PM25150RK |
PM2000B, 10" Tablesaw (5HP, 1Ph, 230V, 50" Fence, w/ Router Lift) |
|
|
|
|
| PM25330K |
PM2000B, 10" Tablesaw (5HP, 3 Ph, 230/460V, 30" Fence) |
|
|
|
|
| PM25350K |
PM2000B, 10" Tablesaw (5HP, 3 Ph, 230/460V, 50" Fence) |
|
|
|
|
| PM25350RK |
PM2000B, 10" Tablesaw (5HP, 3 Ph, 230/460V, 50" Fence, w/ Router Lift) |
|
|
|
|
| Check the items you wish to purchase, then click
|
|
Features:
 |
- Integrated Digital Read Out for precise bevel cuts
Newly designed integrated hydraulic castor system with greater travel than previous model Matching beveled edge between table and extension wings Newly designed Arbor lock for quick and easy blade changes Improved dust collection inside and outside of the cabinet Quick release riving knife greatly reduces binding/kickback risk Built-in Poly-V drive belt system delivers efficient, quiet operation Wide stance heavy-duty trunnion for stability and smooth blade positioning Adjustable angle indicators on the blade bevel scale for repeatable bevel cuts Industrial-duty Accu-Fence System ensures accurate cuts Enclosed cabinet with cast iron base for rigidity Heavy-duty deluxe micro-adjust miter gauge with aluminum extruded 13" extension fence, for good workpiece support and fine angle adjustments. Precision-ground, high luster, cast iron table top with front and rear edge bevel to prevent catching of miter gauge on table edge Heavy-duty chrome plated handwheels contribute to smooth trunnion/arbor movement Independent leaf blade guard and anti-kickback pawls promote safe cutting Industrial magnetic controls, and jumbo stop switch is reachable with the knee
Technical Specs:
- Style (Type): Cabinet
Blade Diameter (In.): 10” Arbor Diameter (In.): 5/8” Arbor Speed (RPM): 4,300 RPM Maximum Depth of Cut at 90 Degrees (In.): 3-1/8” Maximum Depth of Cut at 45 Degrees (In.): 2-1/8” Maximum Diameter of Dado (In.): 8” Maximum Width of Dado (In.): 13/16” Table in Front of Saw Blade at Maximum Depth of Cut (In.): 11-1/4” Maximum Rip Right of Blade (In.): 30” Maximum Rip Left of Blade (In.): 13-1/2” Table Type: Cast Iron Table Height from Floor (In.): 34-1/2” Table Size (In.): 22” x 30-1/2” Table Size with Extensions (In.): 42” x 30-1/2” Table Size with Full Extensions (In.): 63-1/2” x 30-1/2” Table T-Slot (In.): ¾” x 3/8” Dust Collection Minimum CFM Required (CFM): 350 CFM Dust Port Outside Diameter (In.): 4” Motor Specs: - Motor (3HP):3 HP, 1 Ph., 230V Only
- Motor (5HP, 1 Ph.):5 HP, 1 Ph., 230V Only
- Motor (5HP, 3 Ph.):5 HP, 3 Ph., 230/460V
Extended Information:
WARRANTY AND SERVICE
WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your POWERMATIC® tools.
|
|
